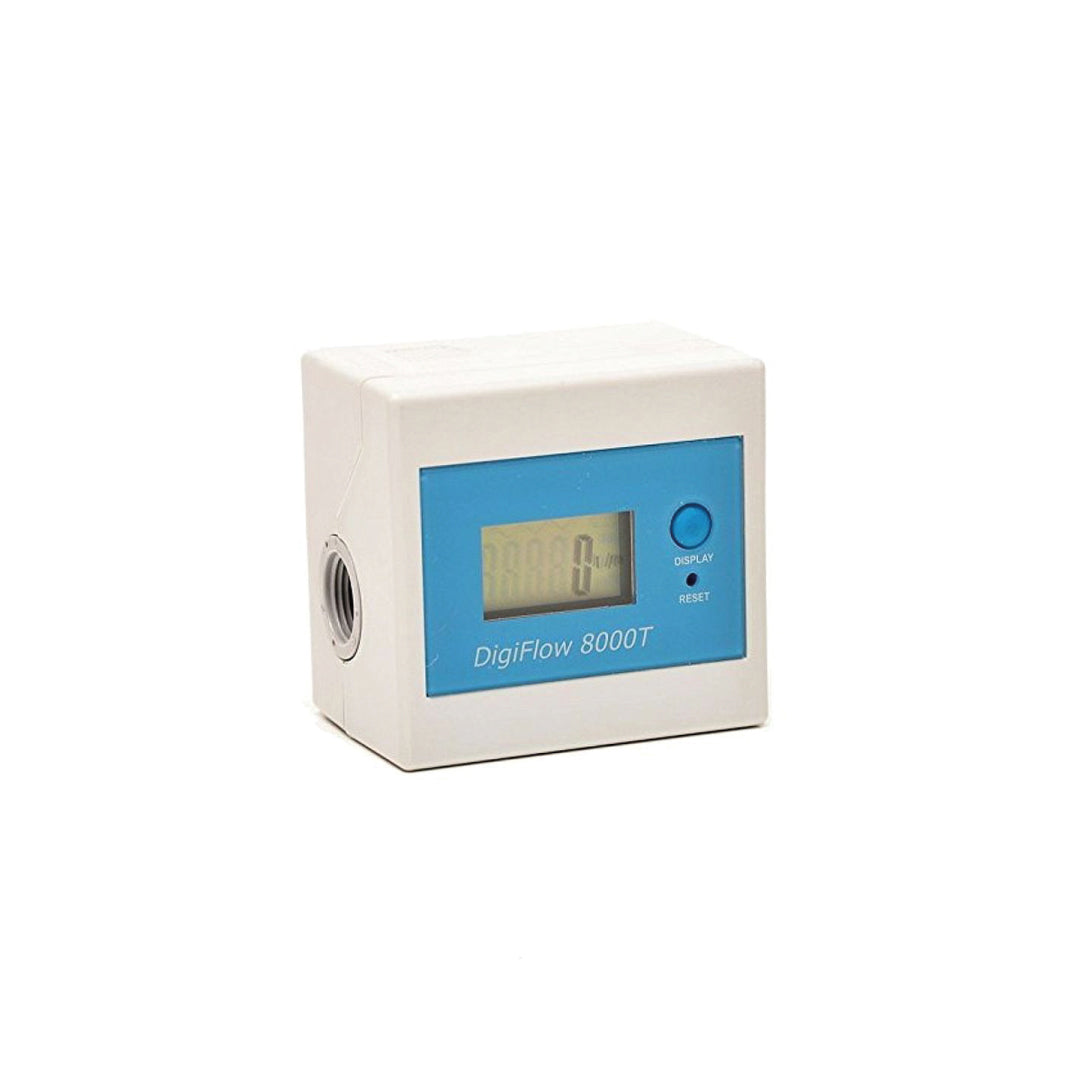

Digiflow 8000 LCD flow meter monitoring COD: CL- 330229

The flow meter is of the TIME-FLOW type and measures the flow of water in litres or gallons.
•input – output: 3/8” MNPT
The LCD display indicates by flashing and with an acoustic alarm when the filter's operating capacity limit is reached.
Equipped with instant detection of the flow rate of water passing through.
Battery operated with 2 AAA alkaline batteries with a one-year life. When the batteries run out, the last processed data will be automatically stored inside the instrument.

INSTRUCTIONS FOR USE

Battery Installation
Slide off the battery compartment cover and insert 2 AAA batteries. Close the cover.

Program the capacity of each filter

Press and hold the DISPLAY button, then press the RESET button and release both buttons. DigiFlow 8000T will enter the programming procedure. The right display will flash the number “1” twice (indicating the number corresponding to the filter to be programmed) and then it will indicate the capacity. Now press the DISPLAY button to choose the capacity of filter number 1. The sequence is 100-200-300… 9800-19900- OFF – 0 – 100 (for the gallon model) or 500-1000…99500-OFF-500 (for the liter model). Holding the DISPLAY button will speed up the circulation of the sequence. After choosing the correct capacity, press RESET to save the programming. The procedure will automatically move on to programming the capacity of filter number 2. The number “2” will now flash twice on the display. Repeat the previous steps to program the capacity of the five filters. After the programming procedure is completed, if there is no input for 10 seconds, it will return to the original state.

Operations
The DigiFlow 8000 It will turn on automatically when water passes through.
It will automatically turn off after 10 seconds if there is no water flow.

Press DISPLAY to view the volume of water passed or press DISPLAY again to view the remaining filter capacity.

Low capacity alarm
When the filter reaches 0 capacity the Digiflow will produce an audible alarm to warn the user to change the cartridges.
Press RESET to turn off the alarm and reset the filter capacity.

Low battery alarm
When the battery power is lower than the normal working level, a buzzer will beep twice to remind you to change the batteries. The information will be retained in memory if the battery is completely discharged or removed.

Reset
Press and hold RESET for 8 seconds to reset the meter.
