Brass pump 200lt/h with short step by-pass COD: CL-592858654

Normally the processing times for this product are 24/working hours from the order.

For orders of multiple units, contact us to ensure actual availability.

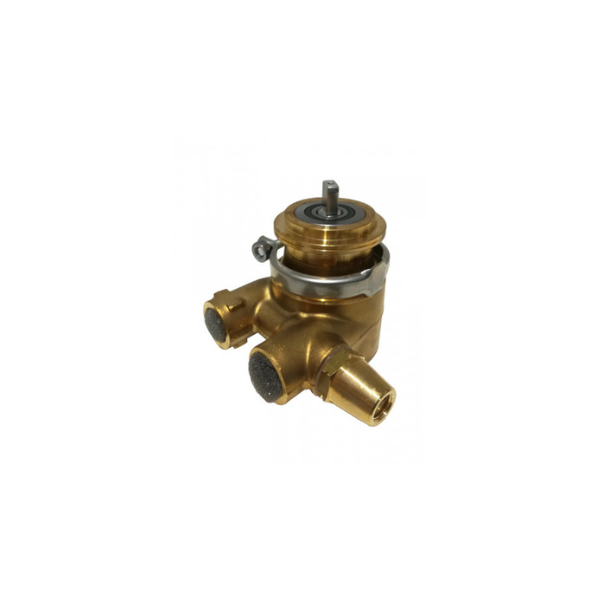

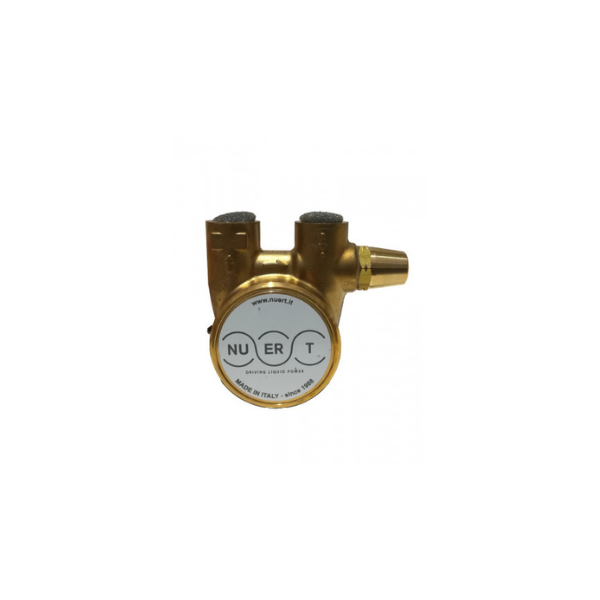

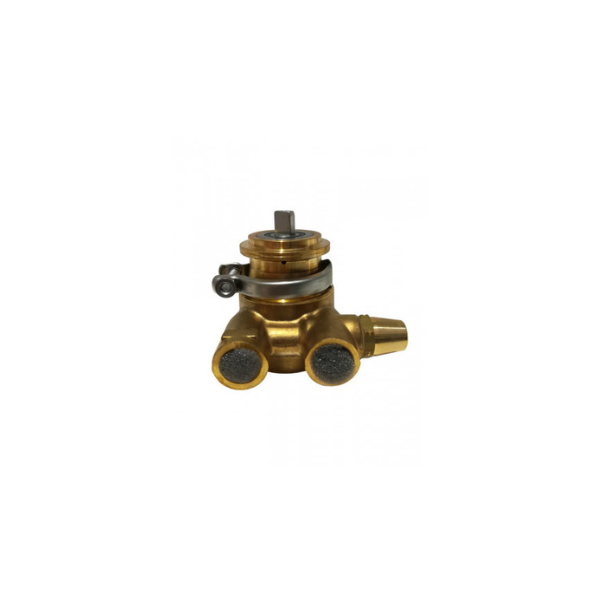

Brass pump for reverse osmosis 200lt./h.

Technical features
Positive displacement pump designed to pump water and moderately aggressive liquids with a low flow rate and high head.
The rotary pump is made of brass with a rotor in AISI 303 while the pumping chamber and the vanes are in graphite.
The suction and delivery threaded connections are 3/8" NPT/GAS.
The pump is designed to be mounted directly on the engine with a stainless steel clamp and has several mounting alternatives.
Maximum operating temperature: 60°C (140°F).

The pump is equipped with:
Short step bypass valve

Gaskets and mechanical seals available:
NBR (standard equipment).

Currently available courses:
200l/h 1450rpm

Engine connection:
Via elastic metal band.
Via screws on flange models.

Applications:
Vending machines;
Post mix;
Espresso machines;
Refrigeration systems;
Reverse osmosis (suitable for Osmo Slim);
Ultra-filtration;
Water dispensers.
