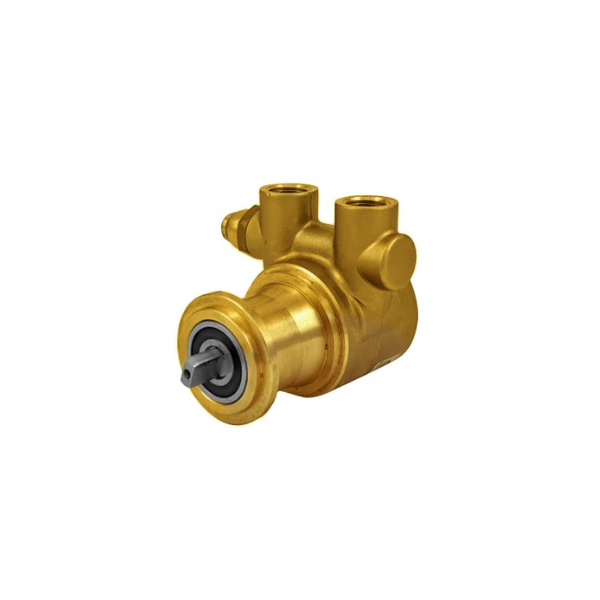

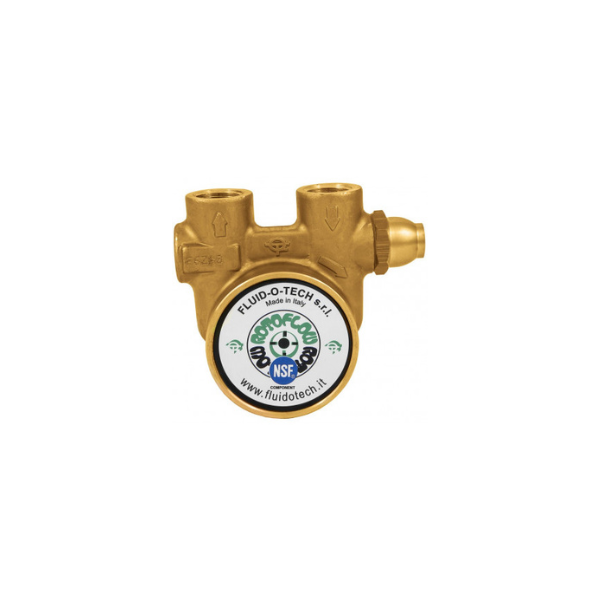

Fluid or Tech vane pump 300lt/h - 3/8" bypass COD: CL-R001988

Normally the processing times for this product are 24/working hours from the order.

For orders of multiple units, contact us to ensure actual availability.

• Fluid o Tech 300lt/h rotary vane pump
• Designed to pump water and moderately aggressive liquids with a low flow rate and high head
• The rotor is made of AISI 303 stainless steel
• The pumping chamber and the blades are made of graphite carbon
• The suction and delivery ports are 3/8” GAS
• The pump can be assembled directly to the engine using a steel clamp

Main applications
- reverse osmosis systems
- vending machines
- espresso machines
- cooling systems
- water treatment
- water dispensers

Technical features
Direct Drive Rotary Vane Pump
Capacity: up to 300 l/h
Model: PA304Z
Body: brass
Pumping chamber: Graphite
Connections: 3/8" GAS
Speed ​​limits: 1,725 ​​rpm
Maximum static pressure: 20 bar
Maximum operating temperature: 70 °C
Compliance: DM 174/2004
Dimensions (cm): 8.8 (L) x 9.9 (D) 7.6 (H)
Weight: 1.1 kg

Pump connection to engine:
• via elastic metal band
